連接器排針規(guī)格

連接器上的排針和排母主要用于板對板之間的電信號傳輸。廣泛應用于電子、電器、儀表中的PCB電路板中，其作用是在電路內被阻斷處或孤立不通的電路之間，起到橋梁的功能，擔負起電流或信號傳輸的任務。通常與排母配套使用，構成板對板連接；或與電子線束端子配套使用，構成板對線連接；亦可獨立用于板與板連接。

0.80mm排母系列：

0.80mm雙排母,SMT,H=3.1mm

1.00mm排母系列：

1.00mm雙排母,SMT,H=2.1mm(可帶定位柱)

1.27mm排母系列：

1.27mm單/雙排母,180度,H=2.1/3.4/4.3mm

1.27mm單排母,SMT,H=2.1/3.4/4.3mm

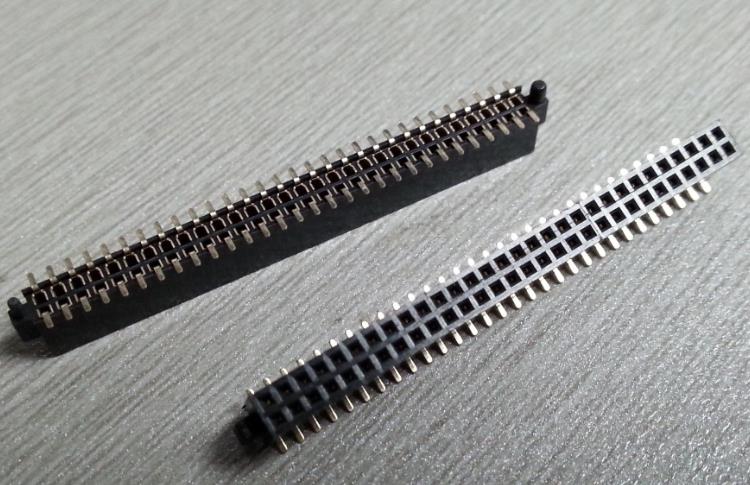

1.27mm雙排母,SMT,可帶定位柱,H=2.1/3.4/4.3mm

1.27mm雙排母,SMT,帶外柱,H=2.1/3.4/4.3mm

1.27mm單排母,90度,H=2.1/3.4/4.3mm

1.27mm單/雙排母,180度,H=4.6mm

1.27mm單/雙排母,SMT,H=5.7mm

1.27×2.54雙排母,180度,H=8.5mm

2.0mm排母系列：

2.00mm單排母,雙排母,180度,H=2.1/4.0/4.3/4.6mm

2.00mm單/雙排母,SMT,H=2.1/4.0/4.3/4.6mm

2.00mm單排母,90度,H=4.0/4.3/4.6mm

2.00mm雙排母,夾板式,H=4.0/4.3/4.6mm

2.00mm單排母,90度,波浪型,H=4.0/4.3/4.6mm

2.00mm單/雙排母,蜈蚣腳,H=4.0/4.3/4.6mm

2.00mm雙排母,90度,單側插,H=7.2mm

2.00mm雙排母,90度,雙側插H=4.9mm

2.00mm雙排母,SMT,雙側插,H=4.9mm

2.00mm單/雙排母,180度,H=6.35mm

2.00mm單/雙排母,90度,H=6.35mm

2.00mm雙排母,SMT,H=6.35mm

2.54mm排母系列：

2.54mm雙排母,180度,U型端子,H=3.5mm

2.54mm雙排母,蜈蚣腳,U型端子,H=3.5mm

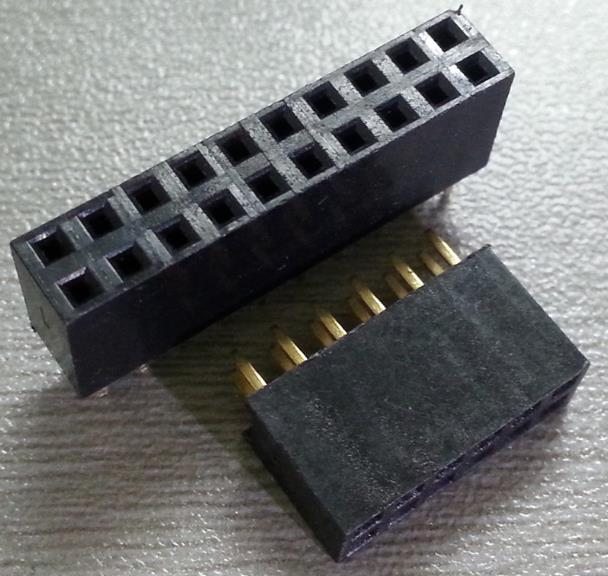

2.54mm單/雙排母,180度,U型端子,H=5.0mm

2.54mm單排母,90度,H=5.0mm

2.54mm單/雙排母,SMT,H=5.0mm

2.54mm單/雙排母,蜈蚣腳,U型端子,H=5.0mm

2.54mm單/雙排母,180度,H=5.7mm

2.54mm單/雙排母,90度,H=5.7mm

2.54mm單/雙排母,180度,上插型,U型端子,H=6.8mm

2.54mm雙排母,180度,下插型,U型端子,H=6.8mm

2.54mm單/雙排母,180度,U型端子,H=7.1mm

2.54mm單/雙排母,SMT,可帶內柱,U型端子,H=7.1mm

2.54mm單/雙排母,180度,H=8.5mm

2.54mm單/雙排母,90度,H=8.5mm

2.54mm單/雙排母,180度,H=8.5+2.5/8.5+5.0/8.5+7.5mm

2.54mm單/雙排母,90/180度,帶凸,H=8.5+2.5/8.5+5.0/8.5+7.5mm

2.54mm單/雙排母,180度,U型端子,波浪型,H=8.5mm

2.54mm單/雙排母,90度,U型端子,波浪型,H=8.5mm

2.54mm單/雙排母,U型端子,蜈蚣腳,H=8.5mm

0.80mm排針系列：

0.80mm雙排針,SMT,180度,H=1.38mm

1.00mm排針系列：

1.00mm單排針,單排雙塑,180度,H=1.0/1.5mm

1.00mm雙排針,雙排雙塑,180度,H=1.0/1.5mm

1.00mm單排雙塑,SMT,H=1.0/1.5mm

1.00mm雙排雙塑,SMT,H=1.0/1.5mm

1.00mm單排針,雙塑,SMT,H=1.0/1.5mm

1.27mm排針系列：

1.27mm單排針,單排雙塑,180度,H=1.0/1.5/1.7/2.0/2.5mm

1.27mm雙排針,雙排雙塑,180度,H=1.0/1.5/2.0/2.5mm

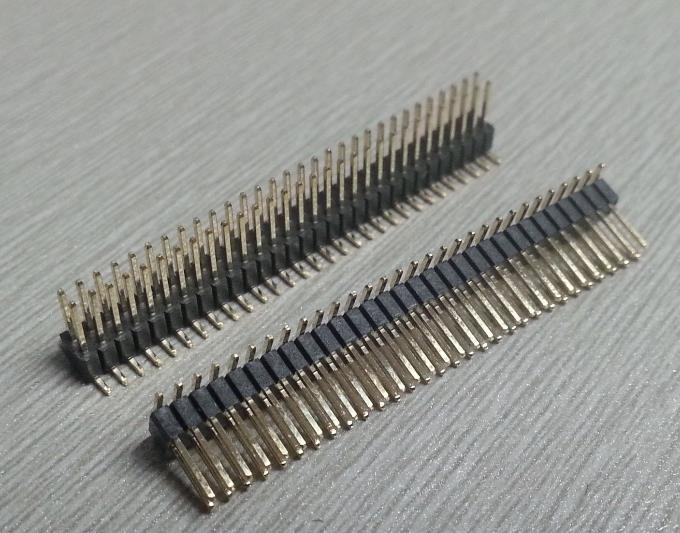

1.27mm單/雙排針,90度,H=1.0/1.5/2.0/2.5mm

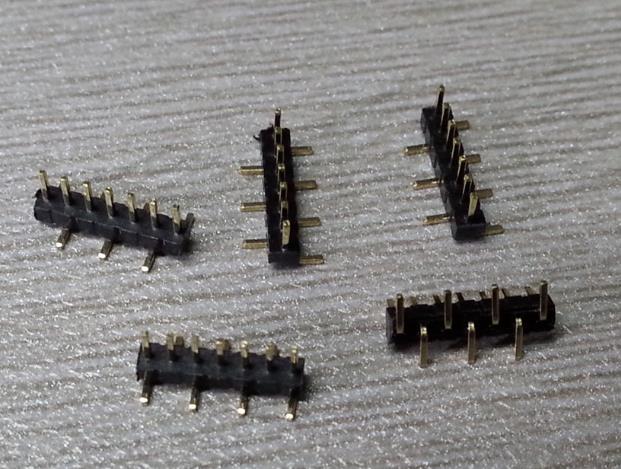

1.27mm單/雙排針,SMT,H=1.0/1.5/1.6/2.0/2.5mm

1.27mm單排雙塑,雙排雙塑,SMT,H=1.0/1.5/2.0/2.5mm

1.27mm單排雙塑,雙排雙塑,90度,H=1.0/1.5/1.6/2.0/2.5mm

2.00mm排針系列：

2.00mm單排針,單排雙塑,180度,H=1.0/1.5/2.0mm

2.00mm雙排針,雙排雙塑,180度,H=1.0/1.5/2.0mm

2.00mm單/雙排針,90度,H=1.0/1.5/2.0mm

2.00mm單排雙塑,雙排雙塑,90度,H=1.0/1.5/2.0mm

2.00mm單/雙排針,SMT,H=1.0/1.5/2.0mm

2.00mm單/雙排針,打K,H=1.0/1.5/2.0mm

2.00mm雙排針,180度,90度,H=4.0mm

2.00mm三排針,180度,H=2.0mm

2.00mm四排針,180度,H=2.0mm

2.54mm排針系列：

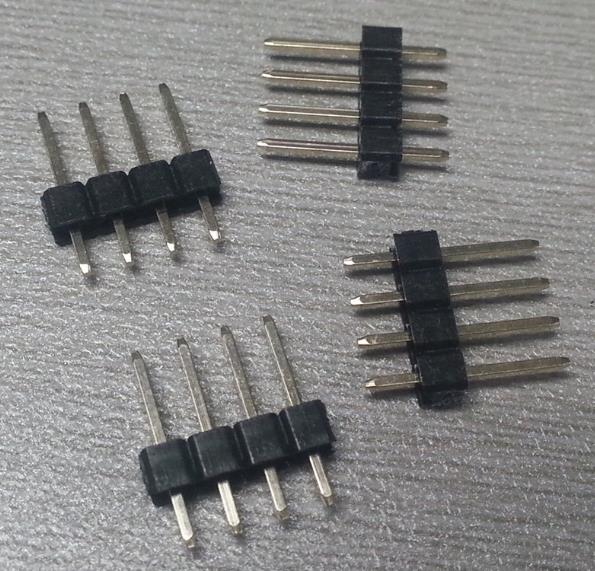

2.54mm單排針,單排雙塑,180度,H=1.5/2.0/2.5mm

2.54mm雙排針,雙排雙塑,180度,H=1.5/2.0/2.5mm

2.54mm單/雙排弱,90度,H=1.5/2.0/2.5mm

2.54mm單/雙排針,SMT,H=1.5/2.0/2.5mm

2.54mm單排雙塑,雙排雙塑,SMT,H=1.5/2.0/2.5mm

2.54mm三排針,90/180度,H=2.5mm

2.54mm單/雙排針,打K,H=1.5/2.0/2.5mm

2.54mm雙排針,90/180度,H=4.3mm

2.54mm雙排針,90/180度,H=7.4mm

2.54mm雙排針,雙塑,90度,塑寬=9.7mm,H=2.54mm
